Specifications.

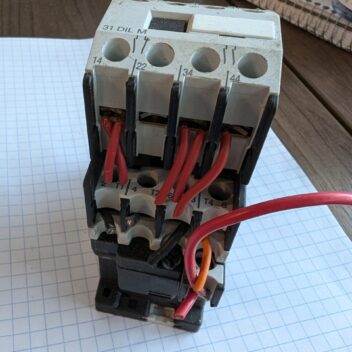

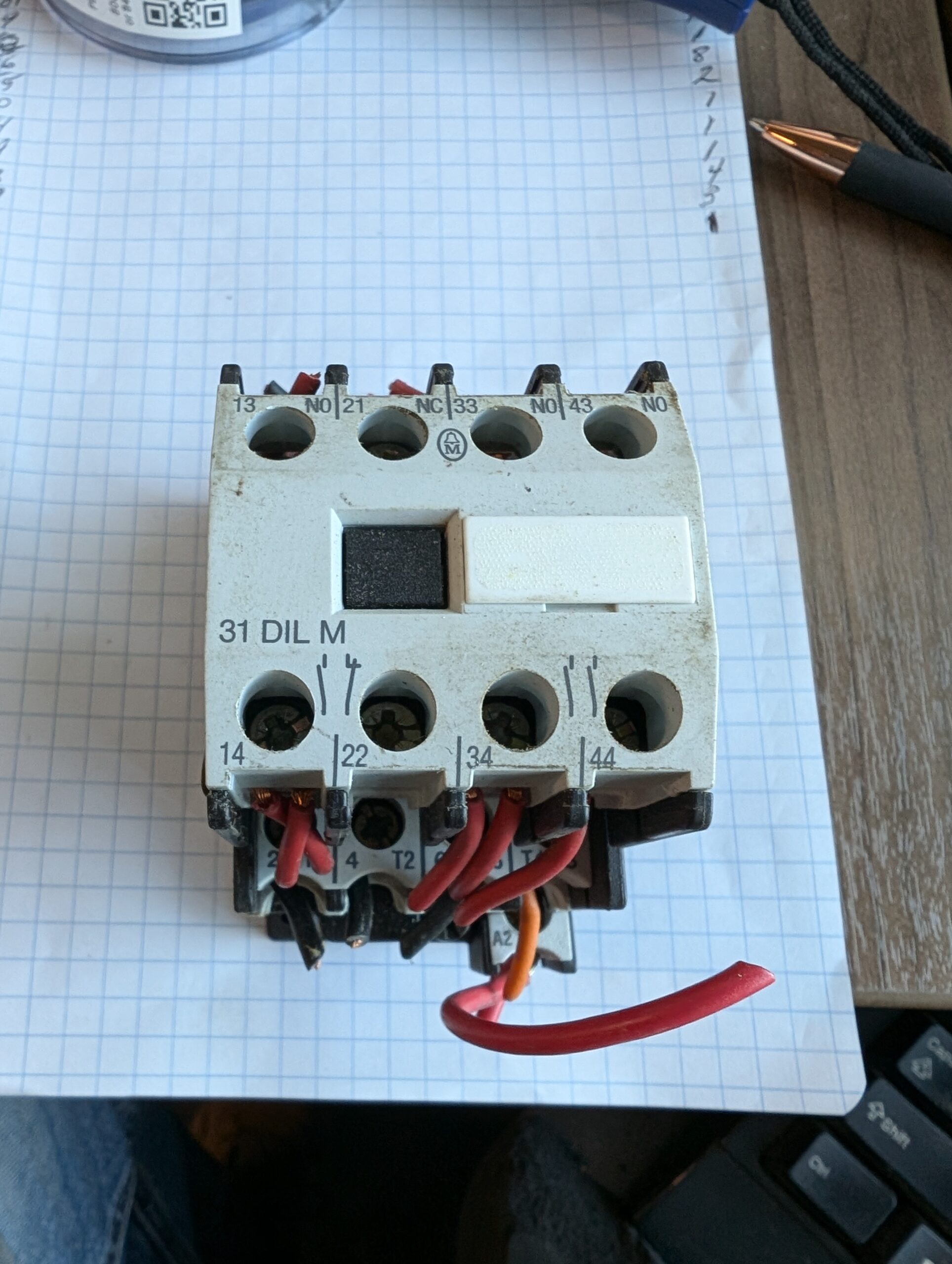

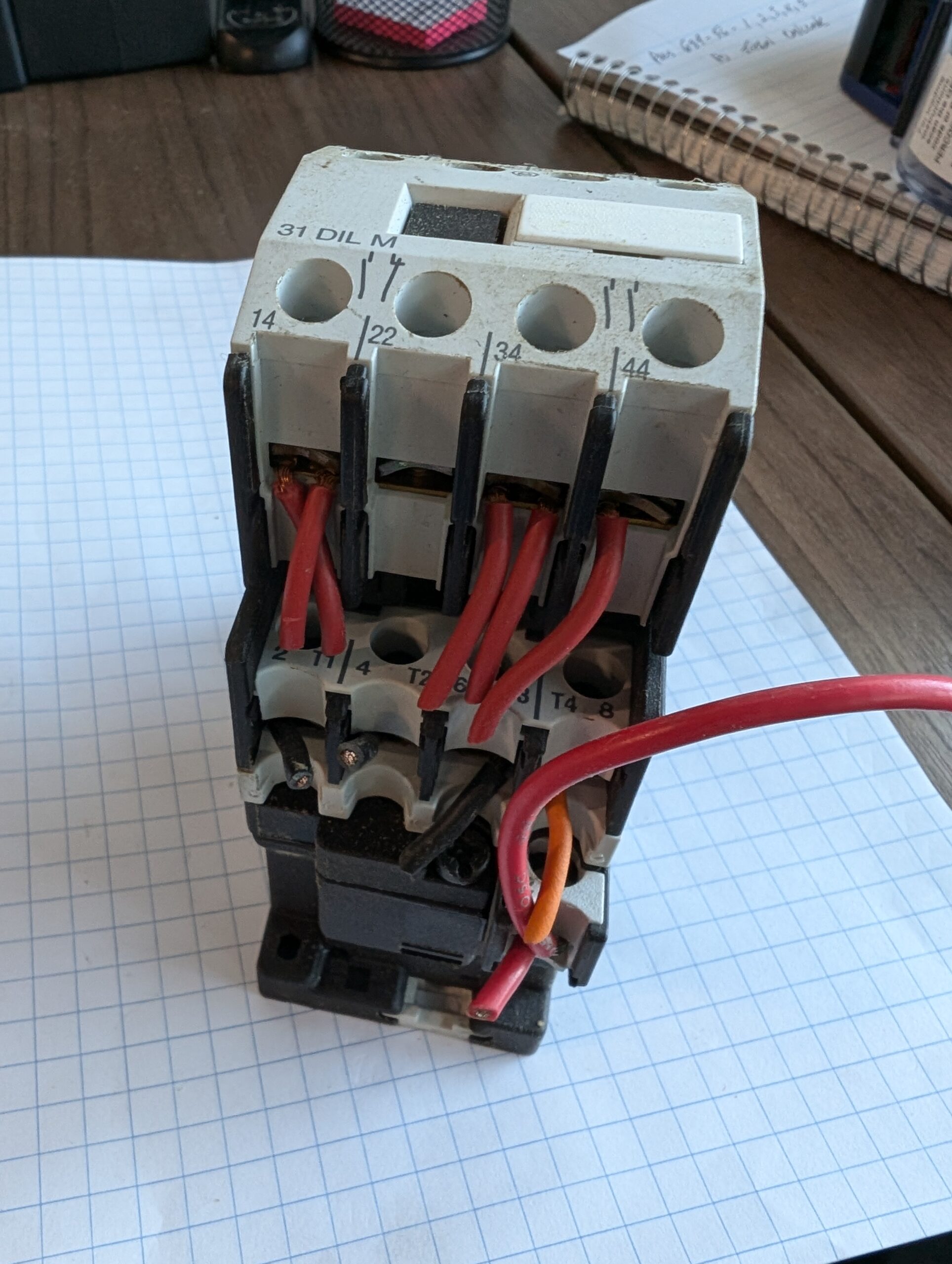

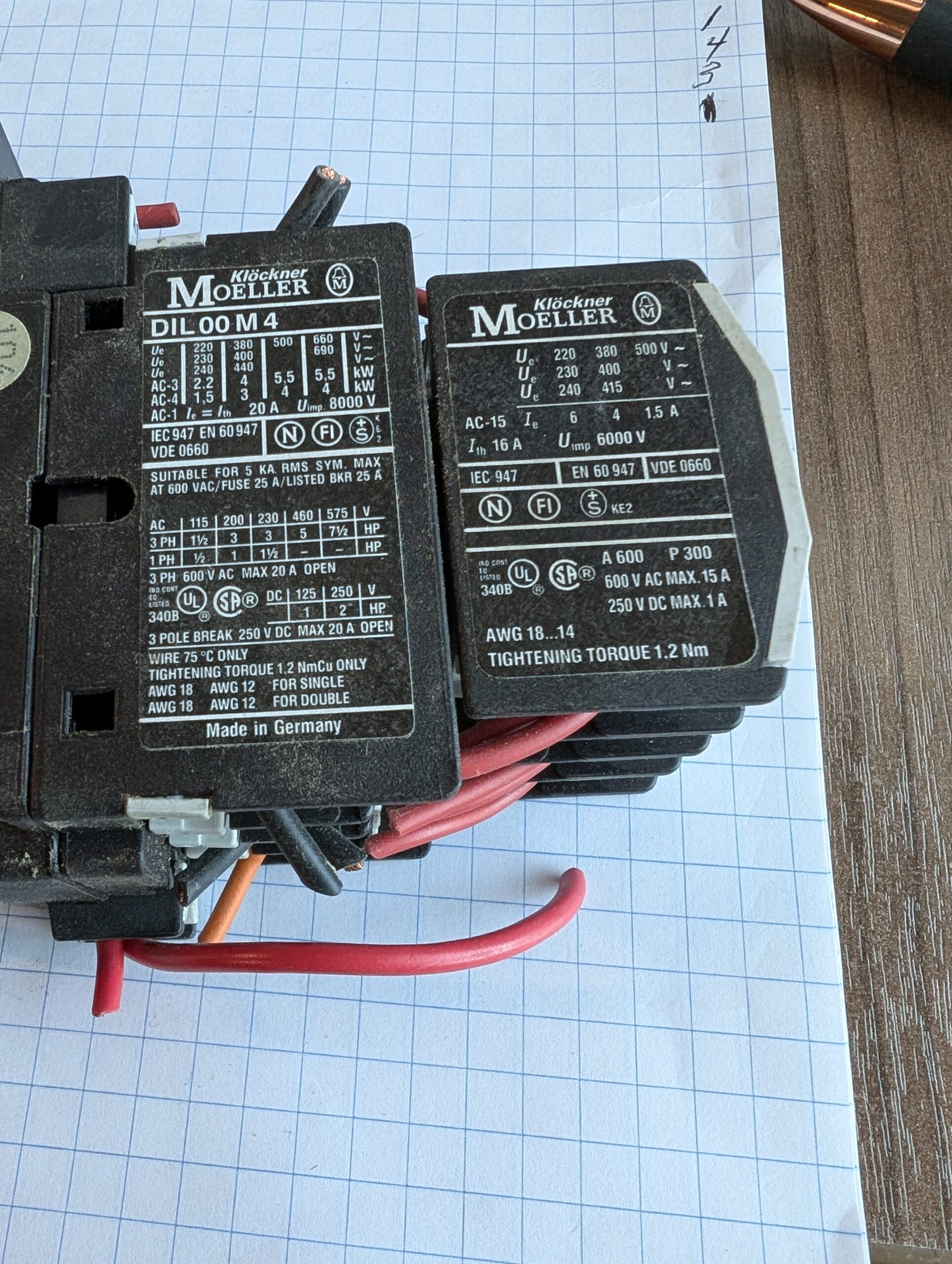

The Klockner Moeller DIL00M4 (often associated with marking styles like DIL M 00 M4) equipped with a top-mounted 31 DIL M auxiliary contact block is an industrial electromechanical contactor setup featuring 3 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts.
- Device Type: Miniature / Standard AC-operated or DC-operated control/motor contactor (legacy Moeller DIL series).
- Operational Voltage: Up to 600V AC max main/auxiliary circuit.
- Thermal Current (\(I_{th}\)): Typically rated up to 16A–20A open.
- Switching Capacity: Designed for fractional to small motor loads (approx. up to 4kW / 5–10 hp depending on operational voltage category like AC-3/AC-4).
Top-Mounted Auxiliary Contact (31 DIL M) Specifications
- Contact Configuration: 3 Normally Open (NO) and 1 Normally Closed (NC)
- Rated Operational Current (\(I_{e}\)):
- 15A at up to 600V AC (General Purpose UL/CSA).
- Rated for specific operational tiers e.g., 6A at 220/240V, 4A at 380/415V under AC-15 utilization categories.
- DC Rating: Max 1A at 250V DC.
- Mounting Style: Front/Top snap-on mount onto the DILM base contactor.
- Insulation Voltage (\(U_{i}\)): 500V / 600V max.
