Yaskawa Electric Corp. SGDB-15VD Servopack
SKU: 110-364
CAD $
1,295.00

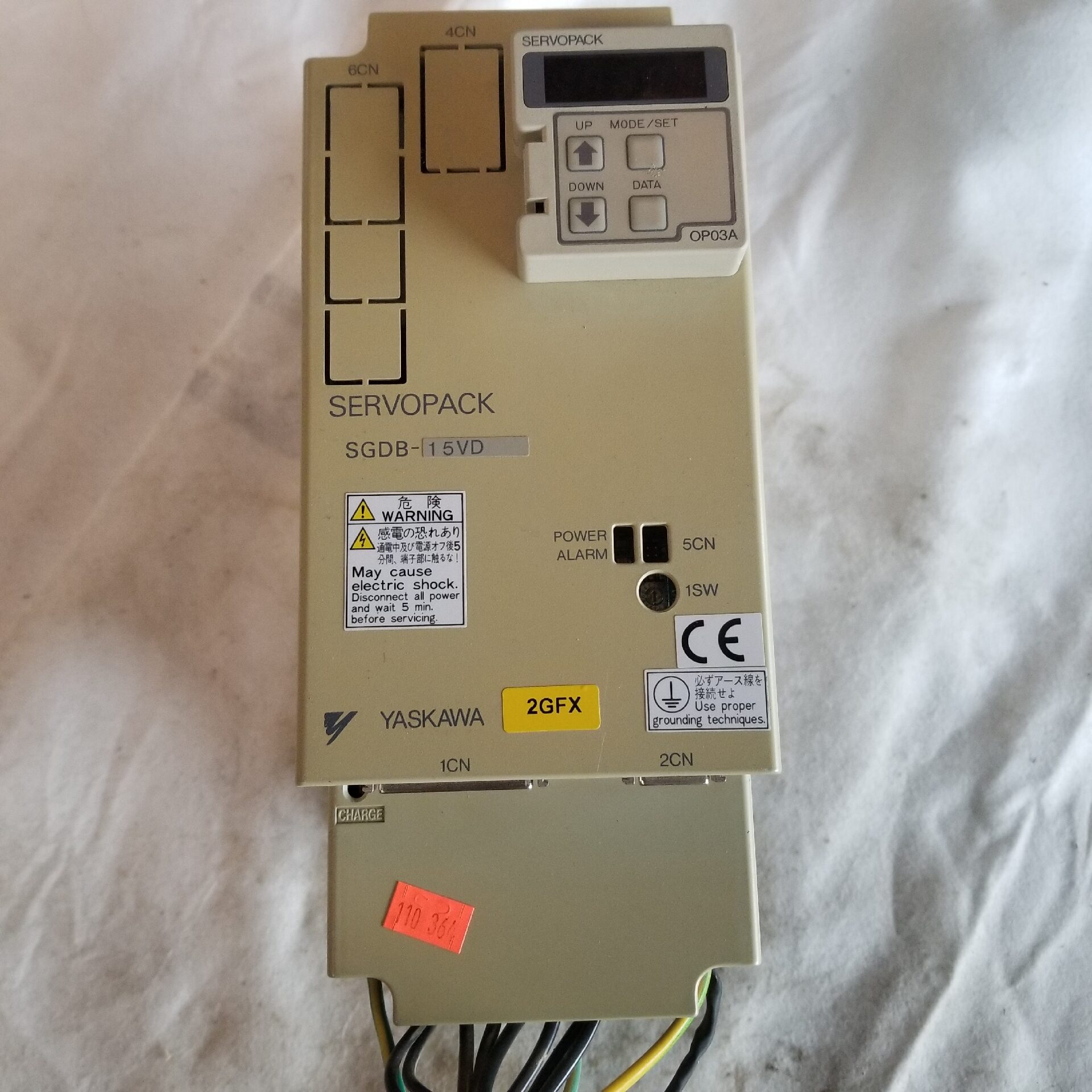

Yaskawa Electric Corp. SGDB-15VD Servopack
Add to cart
Contact Us
Description
Ship Estimate
The
Yaskawa SGDB-15VD
is a
discontinued AC servo drive (SERVOPACK) from Yaskawa’s Sigma series, engineered for precise industrial motion control
.
Power Rating:
~1.3 kW to 1.5 kW (approx. 1.74 – 2.0 HP)
Input Voltage:
3-phase, 200–230 VAC (50/60 Hz), rated at ~10 A
Output Voltage / Current:
0–230 VAC, 3-phase, rated at ~10.5 A
Control Modes:
Speed, torque, and position control (PWM servo control)
Compatible Motors:
Designed for Yaskawa SGMG, SGMS, and related Sigma series servo motors.
Cooling & Environment:
Convection-cooled unit rated for operation in control cabinets.
