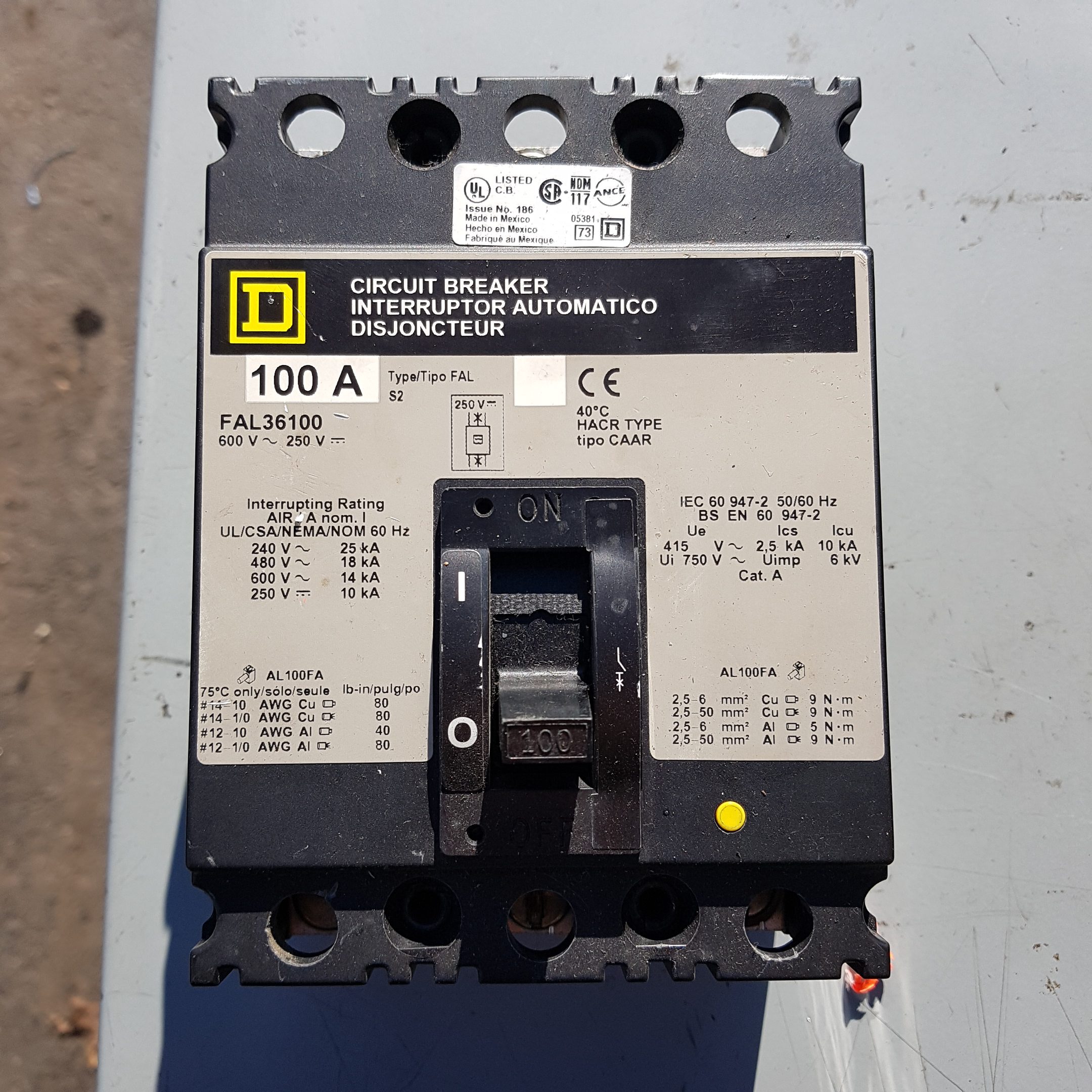

Square D FAL36100 Thermal Magnetic Circuit Breaker 100A

Specifications:

• • Magnetic Tripping Current: 1700 A [1, 2, 3]The Square D FAL36100 is a 100-amp, 3-pole thermal-magnetic molded case circuit breaker designed for 600V AC and 250V DC applications.
  • • Manufacturer / Brand: Schneider Electric / Square D

    • Series / Frame Type: FAL Series / F-Frame

    • Amperage Rating: 100 A

    • Number of Poles: 3-Pole (3-Phase)

    • Voltage Rating: 600 VAC / 250 VDC

    • Trip Unit Technology: Thermal-Magnetic (LI – Long-Time and Instantaneous protection)

    • Magnetic Hold Current: 900 A

  Interrupting Ratings (AIC)

  • 240V AC: 25 kA

  • 480V AC: 18 kA

  • 600V AC: 14 kA

  • 250V DC: 10 kA
