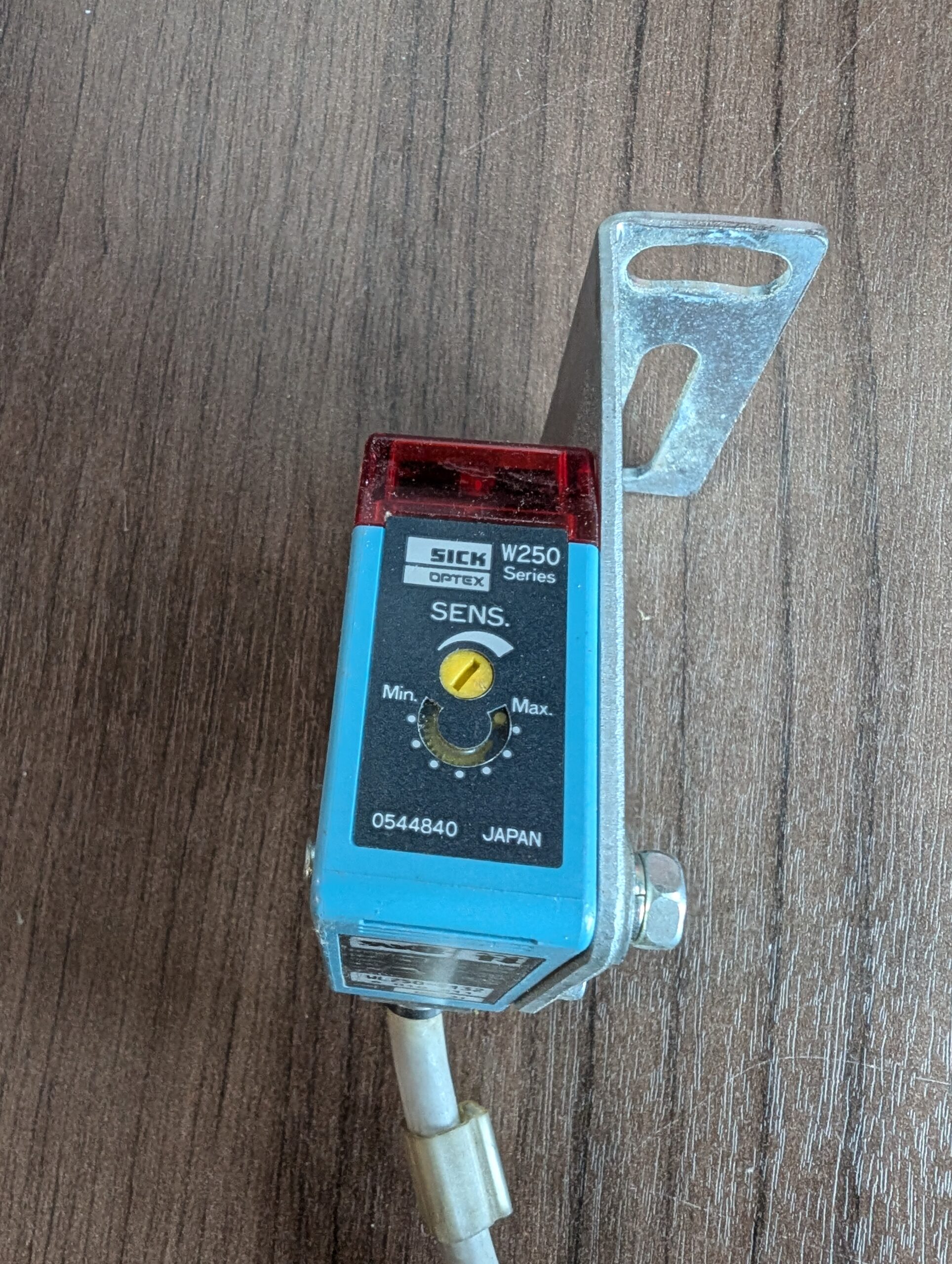

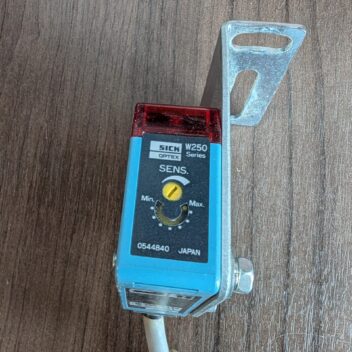

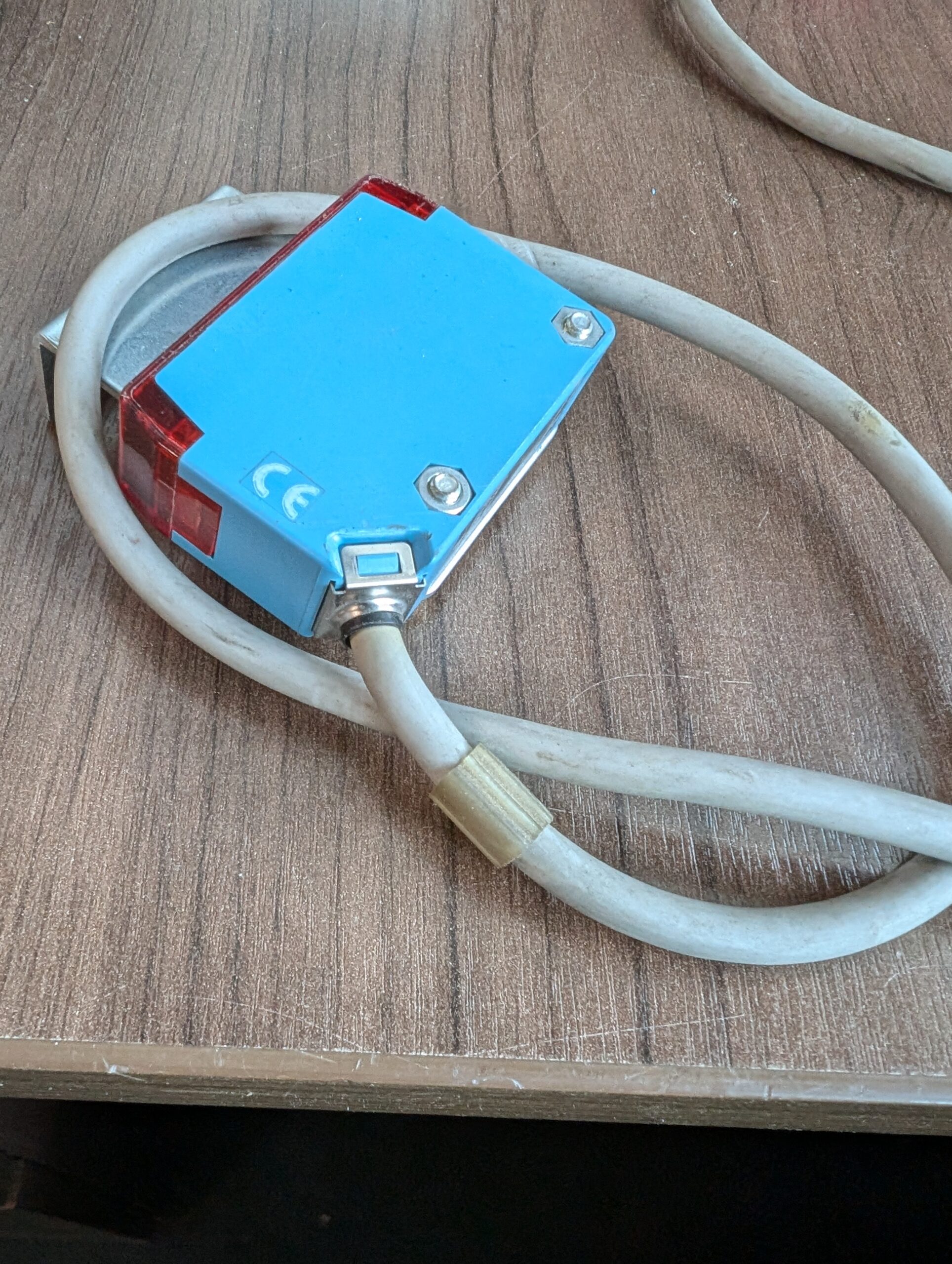

Sick WL250-P430 Photoelectric Sensor 10-30VDC Operating 1-13.5 Meters & Light-Dark Switching
SKU: 120-516
CAD $
253.00
Sick WL250-P430 Photoelectric Sensor 10-30VDC Operating 1-13.5 Meters & Light-Dark Switching
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The
SICK WL250-P430 Photoelectric Retro-reflective Sensor (6010610)
is a retro-reflective optical sensor featuring a
maximum sensing range of 0.01 m to 13.5 m
.
Sensing Range Max:
0.01 m – 13.5 m (with P250 reflector)
Light Source:
Visible red LED
Supply Voltage:
10 V DC – 30 V DC
Switching Output:
PNP
Switching Mode:
Light/dark switching (selectable)
Switching Frequency:
1,000 Hz
Response Time:
≤ 0.5 ms
Current Consumption:
35 mA
Connection Type:
Male connector M12, 4-pin
Dimensions (W x H x D):
20 mm x 65 mm x 43 mm
Enclosure Rating:
IP67
Operating Temperature:
–25 °C to +55 °C
Housing Material:
Plastic, ABS
