Principal application: Robust universal DCC and manual CMMs.
Sense directions:5-axis: ±X, ±Y, +Z
Unidirectional repeatability maximum (2s µm) (at stylus tip: 0.35 µm (0.000014 in)
Pre-travel variation 360° (XY plane): ±1 µm (±0.00004 in)
Weight: 56 g (1.98 oz)
Stylus range:M3
Stylus force range (adjustable):0.11 N to 0.3 N
Stylus force (set by Renishaw):0.11 N to 0.13 N
Stylus overtravel (typical) XY plane: ±22°, +Z-axis: 5.5 mm (0.22 in) at 0.11 N,
2 mm (0.08 in) at 0.3 N
Maximum extension on PH10 series:200 mm (7.87 in)
Mounting method: M8 thread
Suitable interface: PI 7-3, PI 200-3, UCC

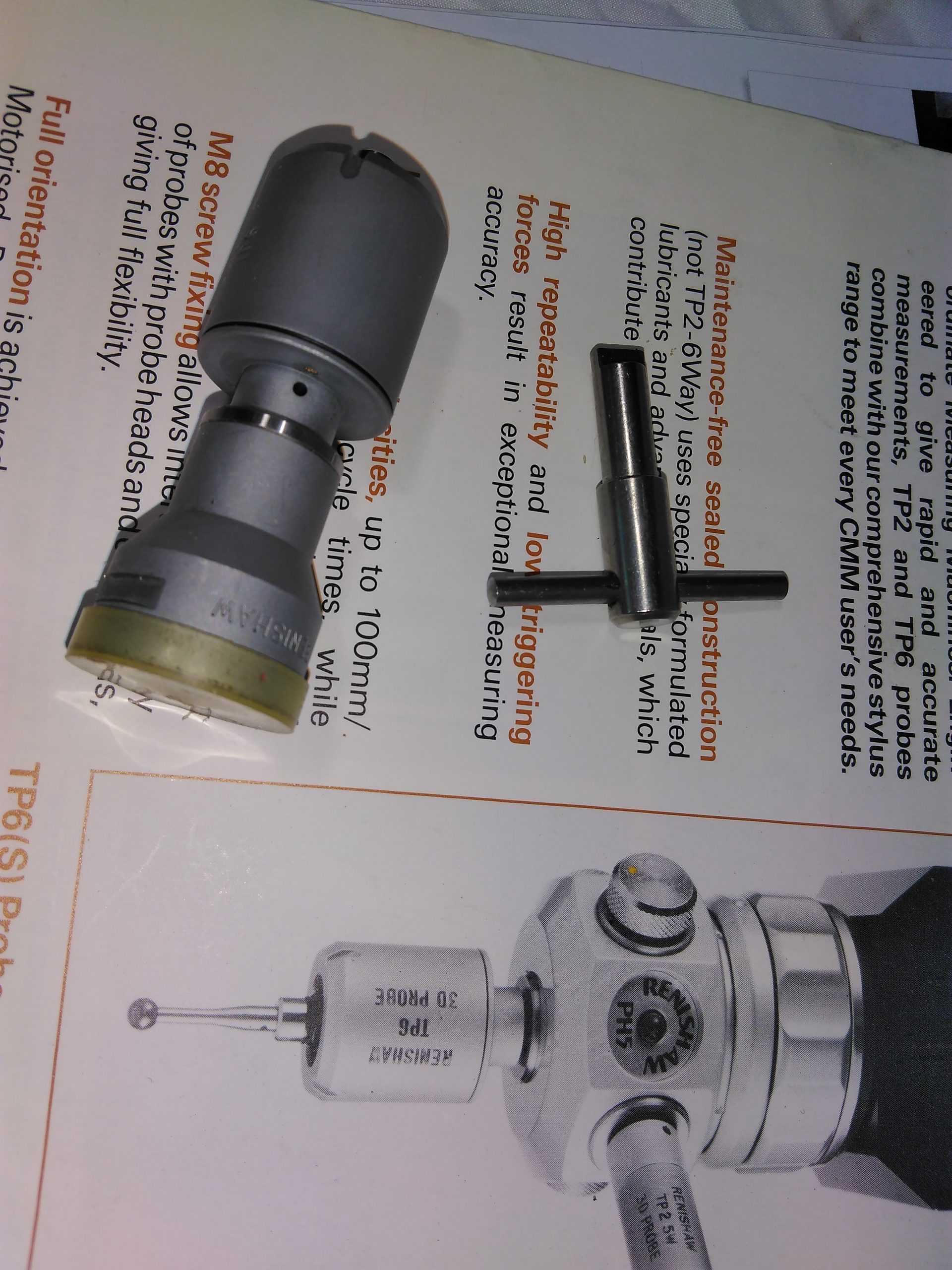

Comes with spanner
