Pizzato EAC FR993-D1M1 Safety Position Switch
SKU: 639-56-13
CAD $
85.63

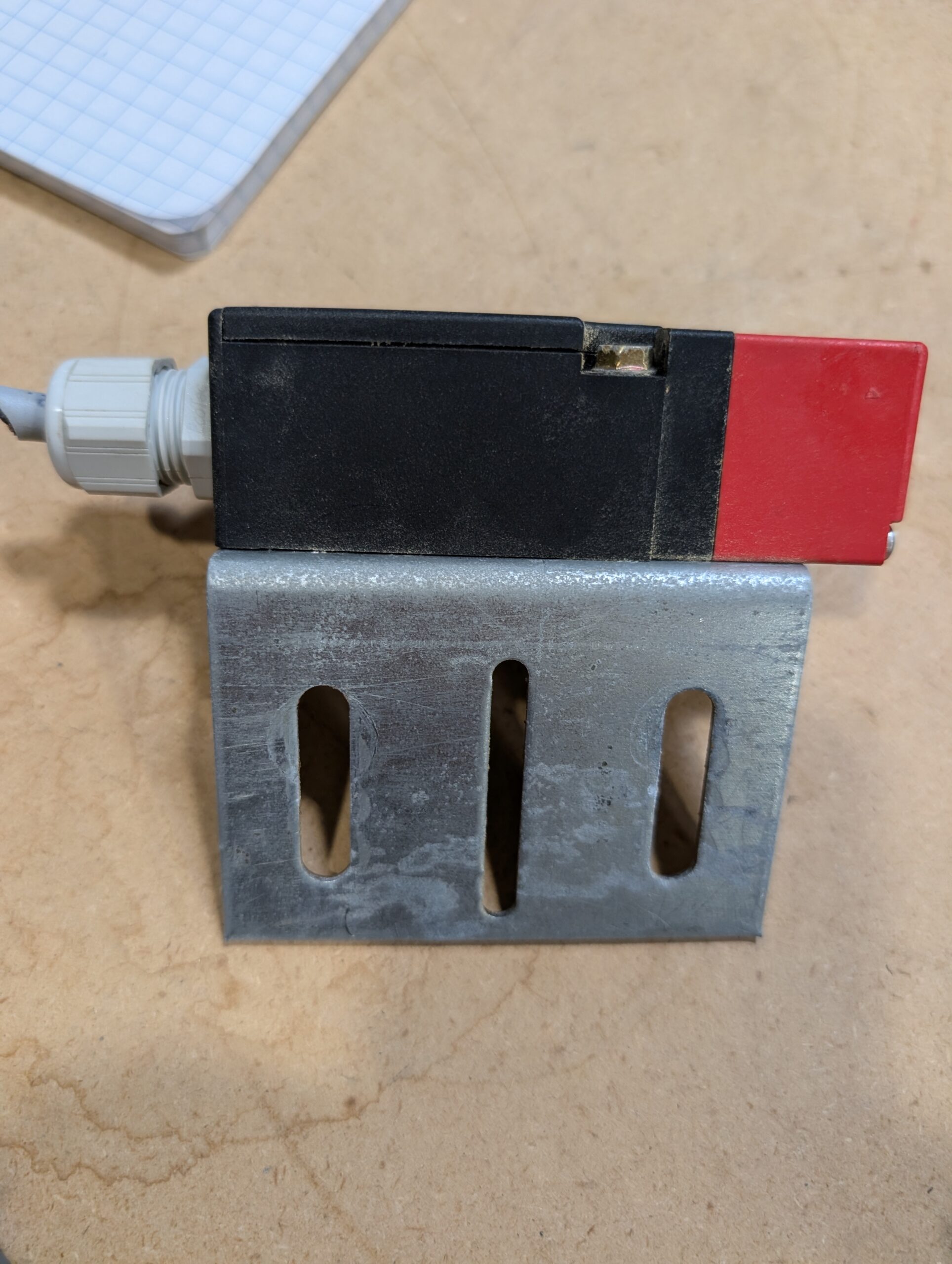

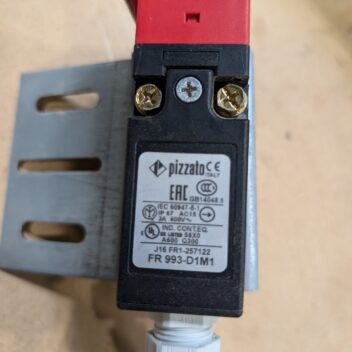

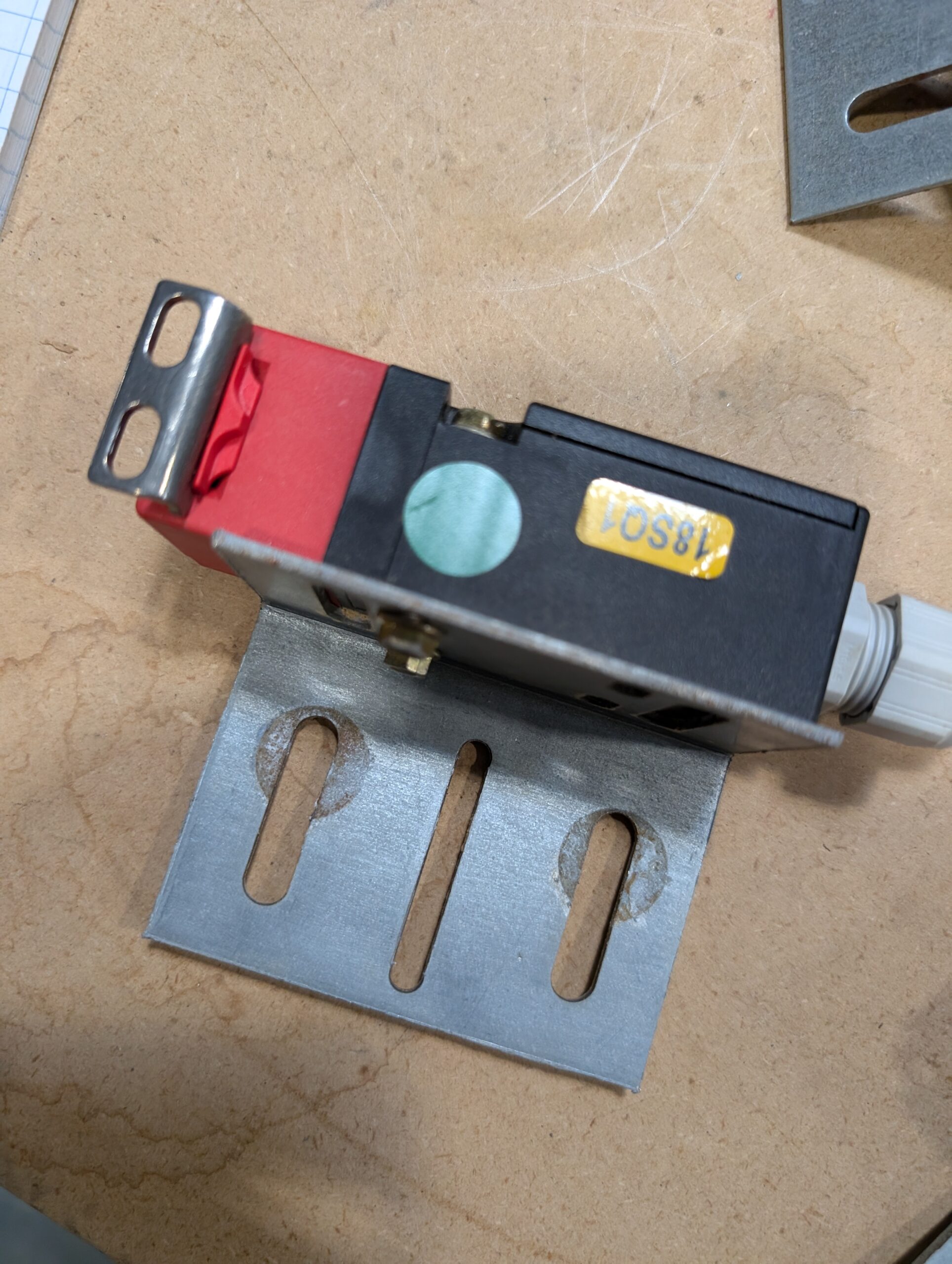

Pizzato EAC FR993-D1M1 Safety Position Switch
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The
Pizzato FR 993-D1M1
is a safety interlock position switch with a separate actuator, designed for monitoring protective guards and machine doors. It features a
robust technopolymer housing and slow-action contacts with positive opening operation
.
Manufacturer:
Pizzato Elettrica
Product Series:
FR Series
Model / Part Number:
FR993-D1M1
Product Type:
Safety interlock switch with separate actuator
Housing Material:
Technopolymer (plastic)
Contact Configuration:
2NC (Normally Closed) slow action contacts
Positive Opening:
Yes (compliant with safety standards)
Actuation Force / Extraction Force:
10 N
Actuator Type:
Angled actuator ( VF KEYD1 zinc-plated steel included)
Conduit / Cable Entry:
M16 x 1.5 cable entry (with PG13.5 compatibility options depending on configuration)
Protection Rating:
IP67 (EN 60529) and IP69K (ISO 20653)
Operating Temperature Range:
-25°C to +80°C
Mechanical Durability:
Approx. 1,000,000 operations
Approvals / Certifications:
EAC, CE, cULus, CCC (varies by regional compliance)
