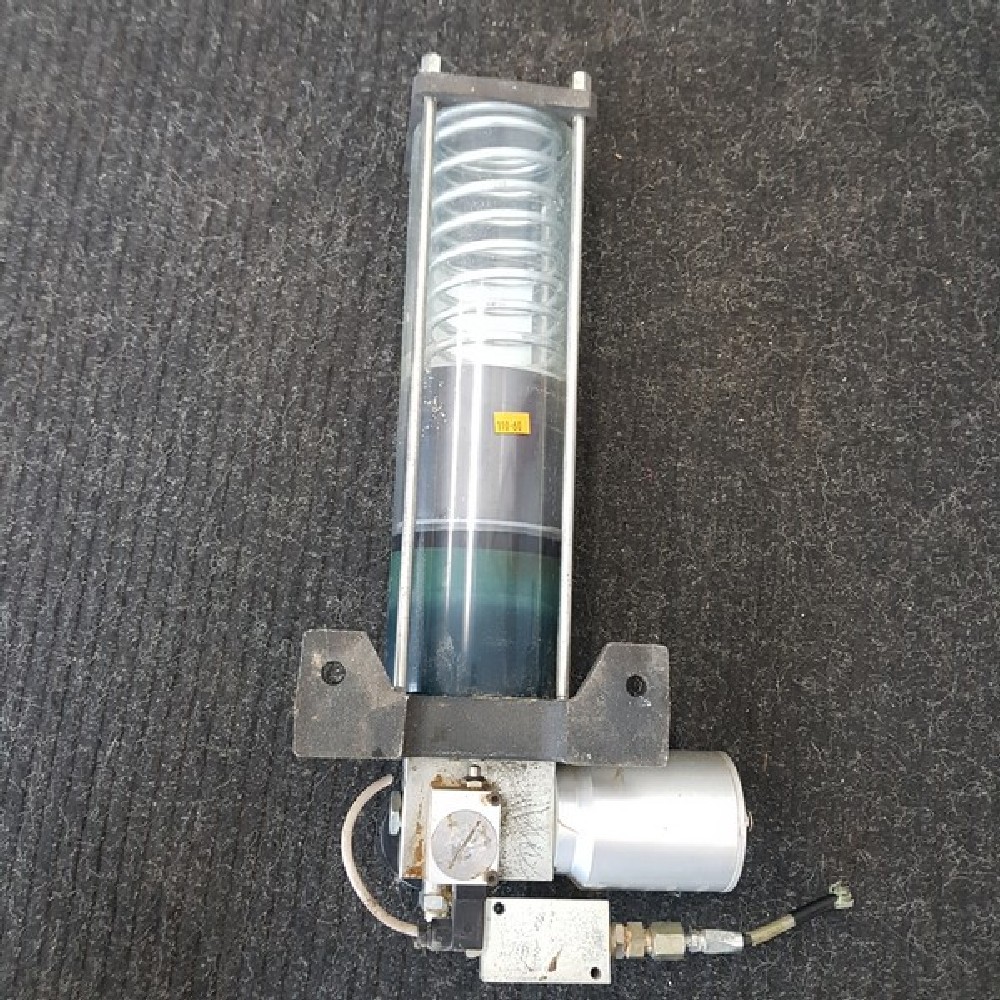

The ILC PAG-50 pneumatic grease pump (Part Number 00.304.3) is a centralized lubrication piston pump designed for progressive grease distribution systems on medium-to-large machinery.
Pump Type: Fixed pneumatic piston pump
Discharge Rate: 2 cc per cycle
Part Number: 00.304.3 (or related variant 90.304.3)
Tank Capacity: 1,300 cm³ (approx. 2.5 kg reservoir)
Maximum Grease Rating: Up to NLGI-3 grease
Drive Mode: Single-action pneumatic piston controlled by compressed air with spring return
Features
Includes a spring and follower plate inside the reservoir to ensure consistent grease feeding.
