SKU: 584-106 CAD $267.53

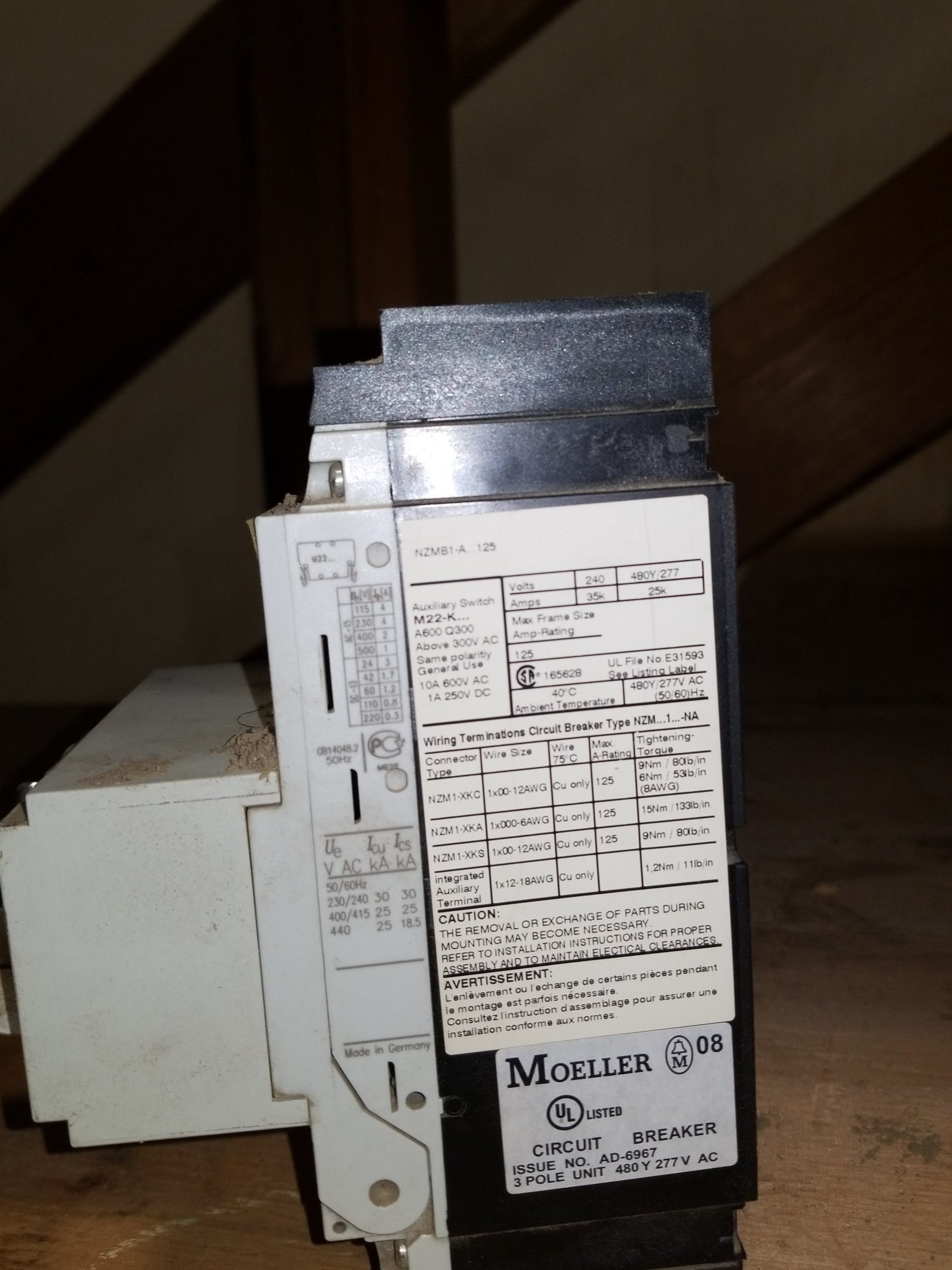

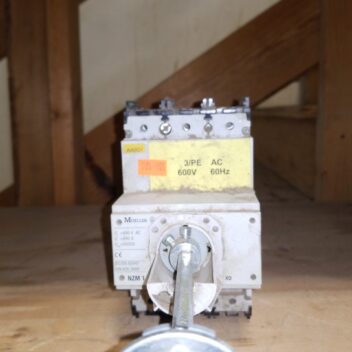

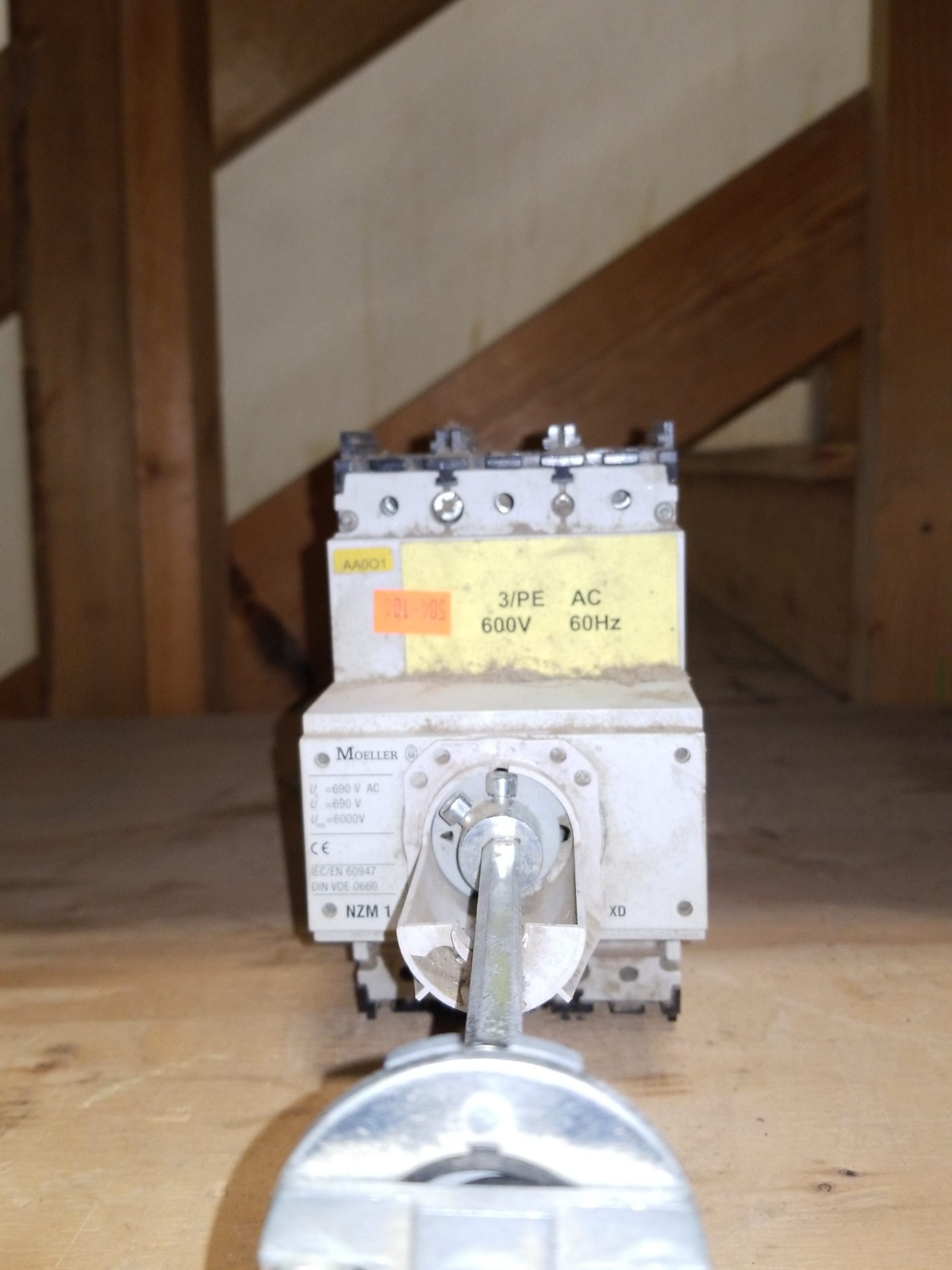

Moeller 600V NZM1 circuit breaker

Specifications:

    • The Eaton Moeller series NZM1 is a compact molded case circuit breaker (MCCB) designed for system, cable, and motor protection.
      • Frame Size: NZM1 series

      • Number of Poles: 3-pole and 4-pole variants available

      • Dimensions: 90 mm (width) × 145 mm (height) × 88 mm (depth)

      • Weight: Approximately 1.03 kg to 1.07 kg

      • Protection Rating: IP20 (terminal/housing protection)

      • Operating Temperature: -25°C to 70°C

      • Lifespan: Up to 20,000 mechanical operations and 5,000 to 7,500 electrical operations.

      Electrical Ratings

      • Rated Uninterrupted Current (\(I_{u}\)): Up to 160 A (models range across ratings like 40A, 63A, 100A, 160A)

      • Rated Operational Voltage (\(U_{e}\)): Up to 690 V AC

      • Switching Capacity (\(I_{cu}\) / \(I_{cs}\)): 25 kA, 35 kA, 50 kA, or up to 65 kA depending on the specific model variant (e.g., NZMB1, NZMC1, NZMN1) and operational voltage (400/415V or 690V

Weight 2.95 lbs
Dimensions 36 × 36 × 36 in
