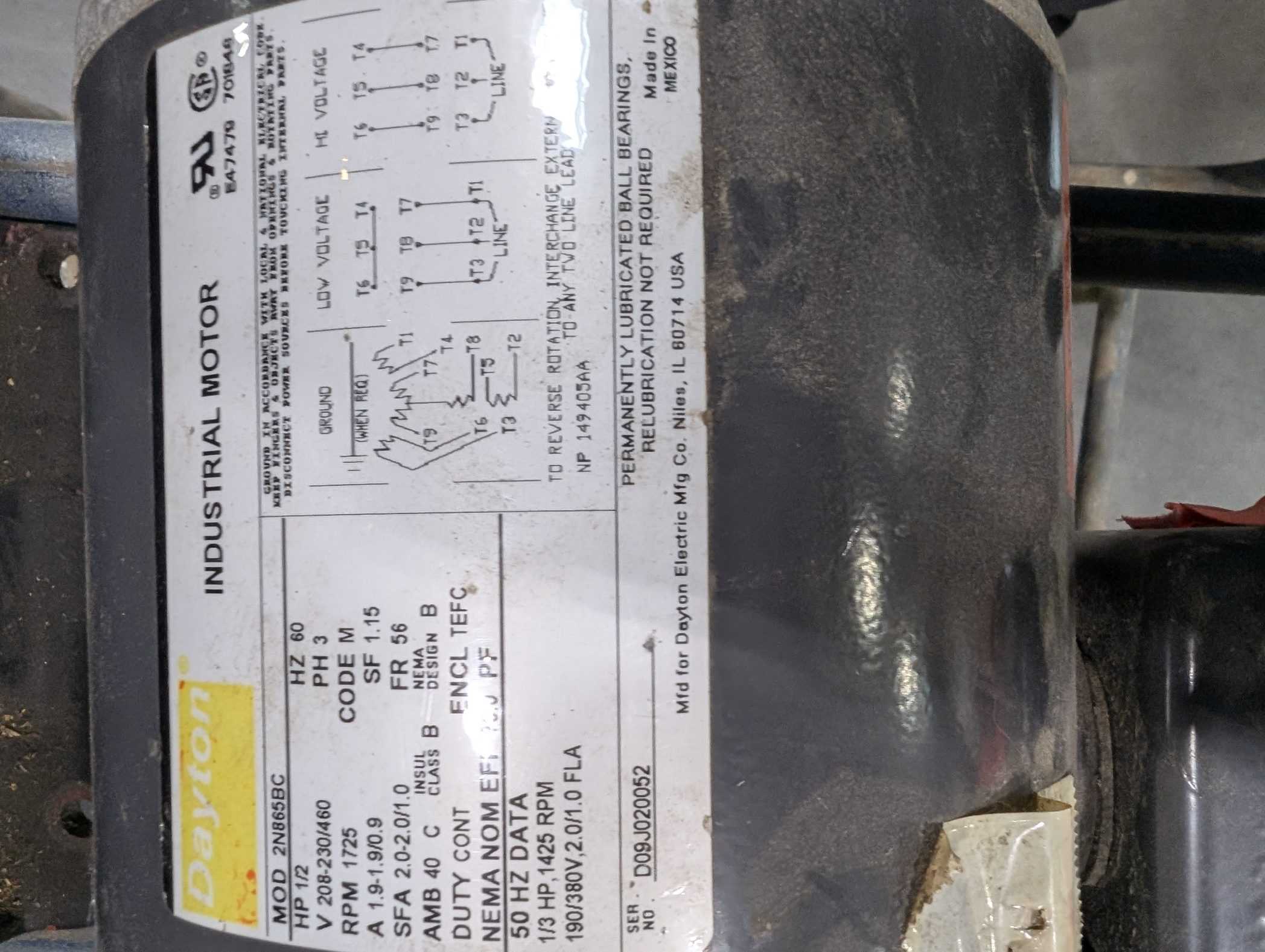

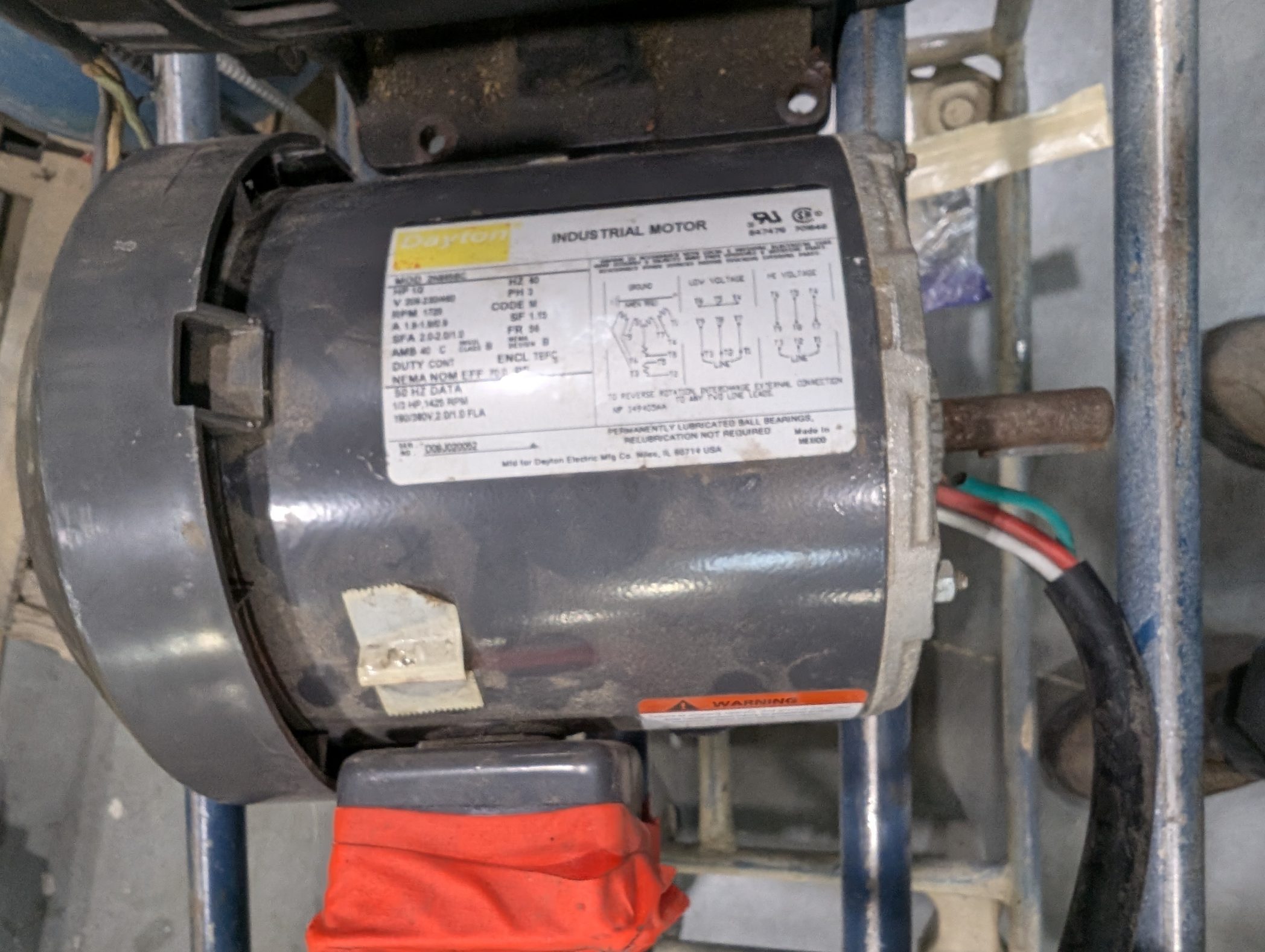

Dayton 2N865BC Electric Motor 1/2 Hp

Specifications:

• The Dayton 1/2 HP General Purpose Motor (2N865 / 2N865BC) is a 3-phase industrial AC motor designed for continuous general-purpose operation.
  • Horsepower: 1/2 HP

  • RPM: 1,725 – 1,745 RPM (Nameplate: 1,745 RPM)

  • Phase & Voltage: 3-Phase, 208-230/460V AC

  • Full Load Amps (FLA): 1.8 – 1.7 / 0.90 A

  • Frame Size: 56 (Rigid Base Mount)

  • Shaft Diameter & Type: 5/8 in keyed shaft (Length: 1 7/8 in)

  • Service Factor: 1.15 to 1.25 (varies by listing specification)

  • Rotation: Reversible (CW / CCW)

  • Thermal Protection: None

  • Enclosure / Construction: Rolled steel body
