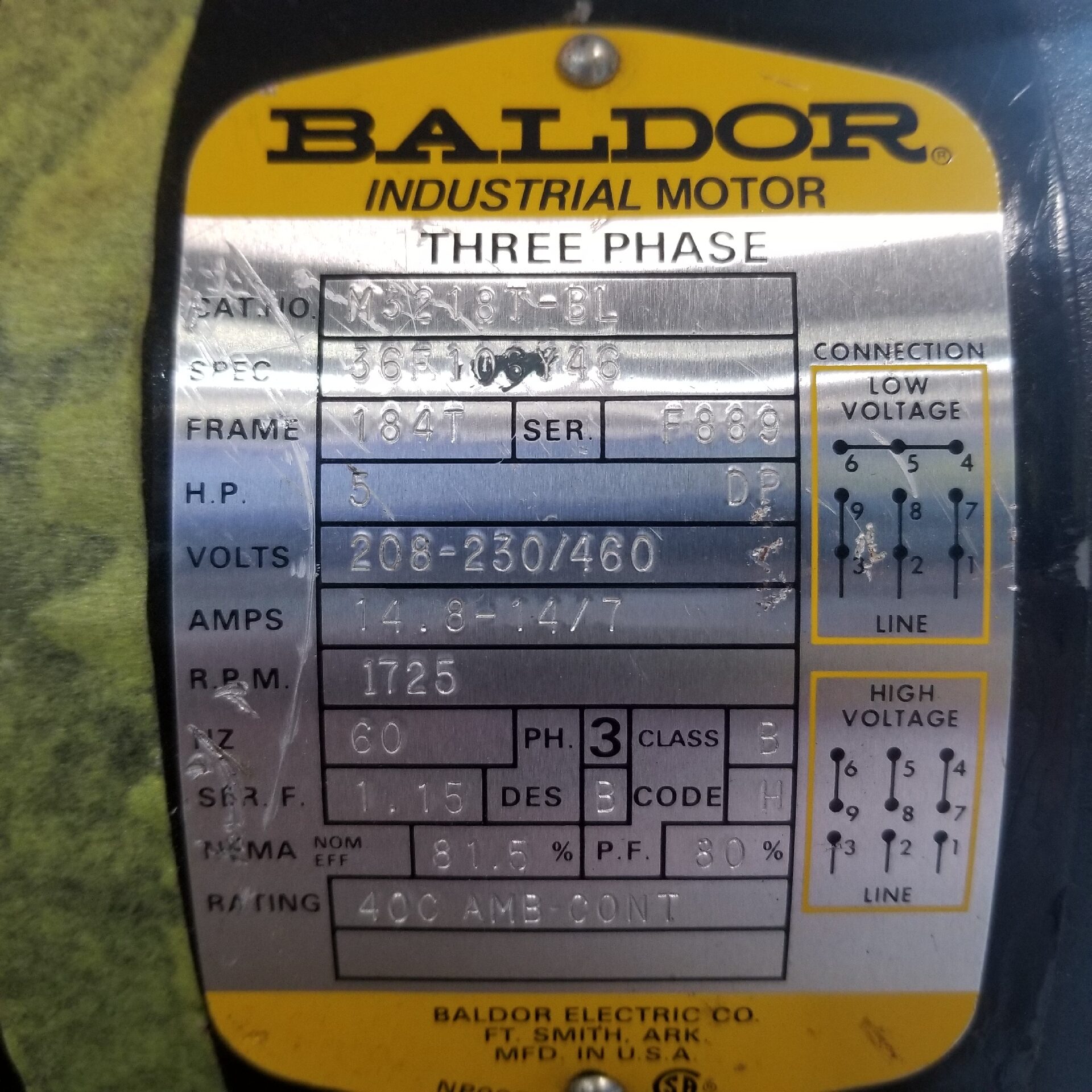

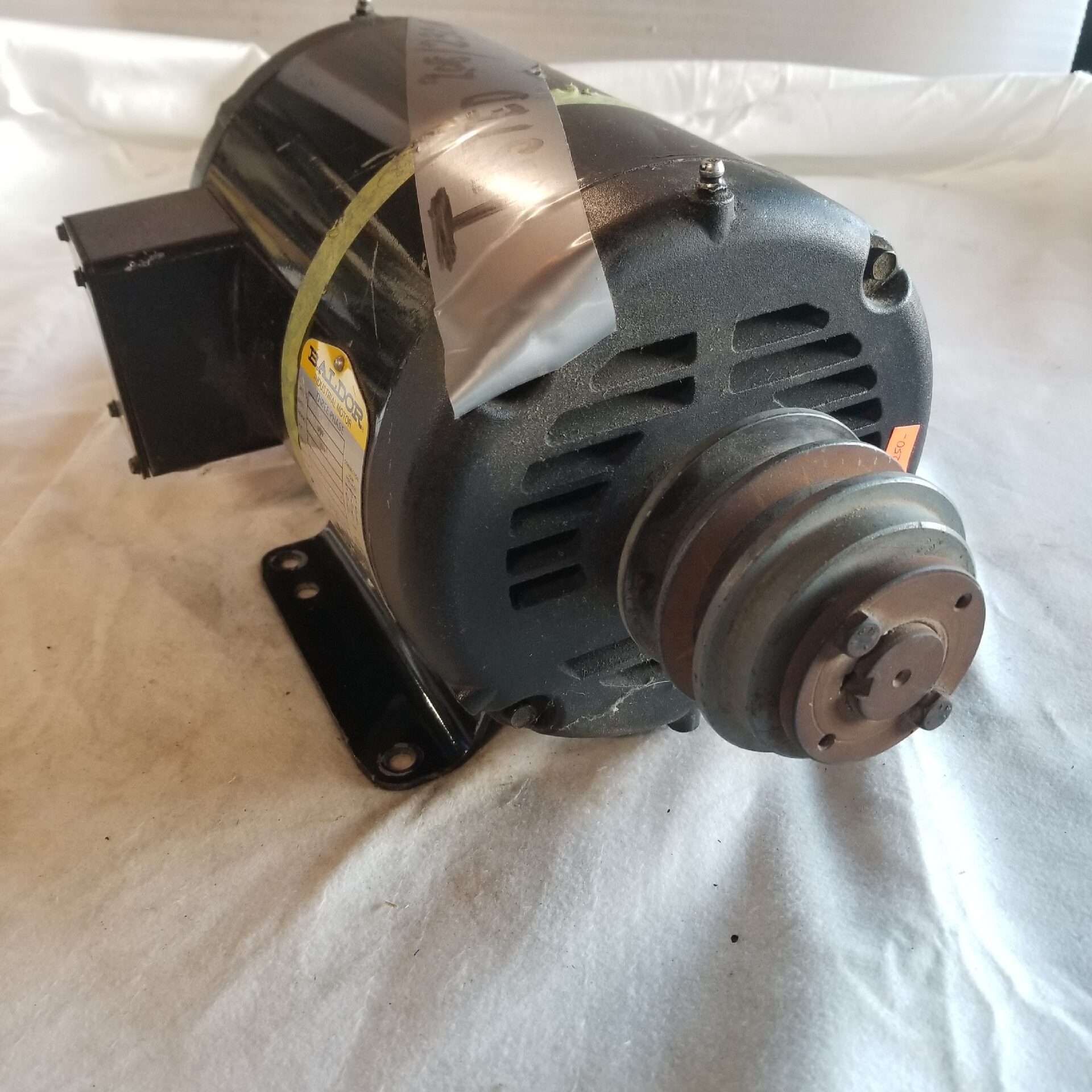

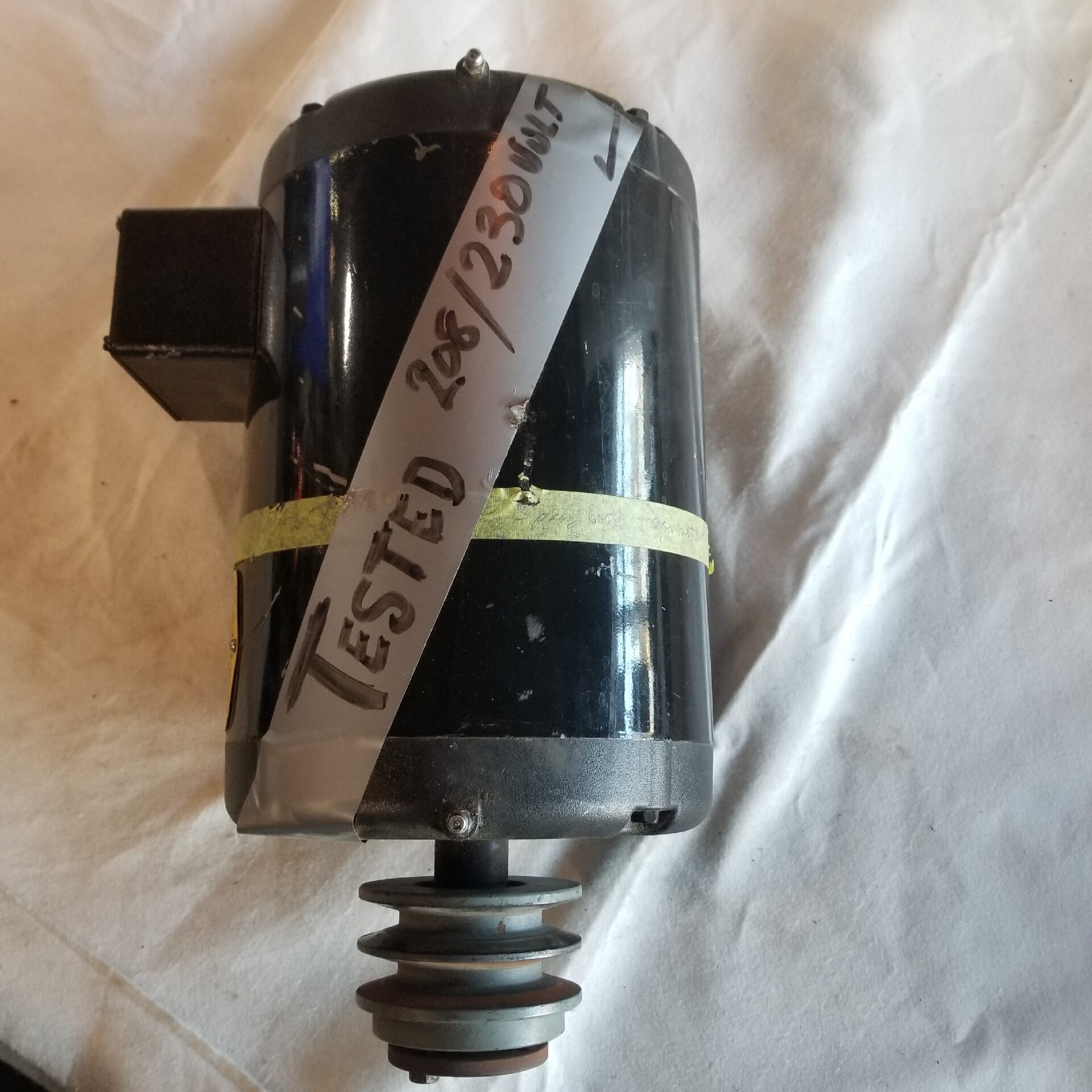

The Baldor M3218T is a 3-phase, 5 HP general-purpose industrial electric motor featuring an open drip-proof (OPSB / ODP) enclosure and a rigid base mount.
Horsepower: 5 HP
Phase / Frequency: 3-phase, 60 Hz
Voltage: 208-230 / 460 V
Full Load Amps (FLA): 15.6–14.4 A at 208V/230V, and 7.2 A at 460V
RPM / Speed: 1750 RPM (Nameplate)
NEMA Frame Size: 184T (Rigid base mount)
Enclosure Type: OPSB (Open Proof Steel Band / Open Drip-Proof)
Service Factor: 1.15
Nominal Efficiency: 87.5%
Power Factor: 74%
Insulation Class: Class B / Class F variants available
