Baldor Electric Motor M3611T 3Hp 3Phase 60Hz 208-230V
SKU: 120-938
CAD $
897.63

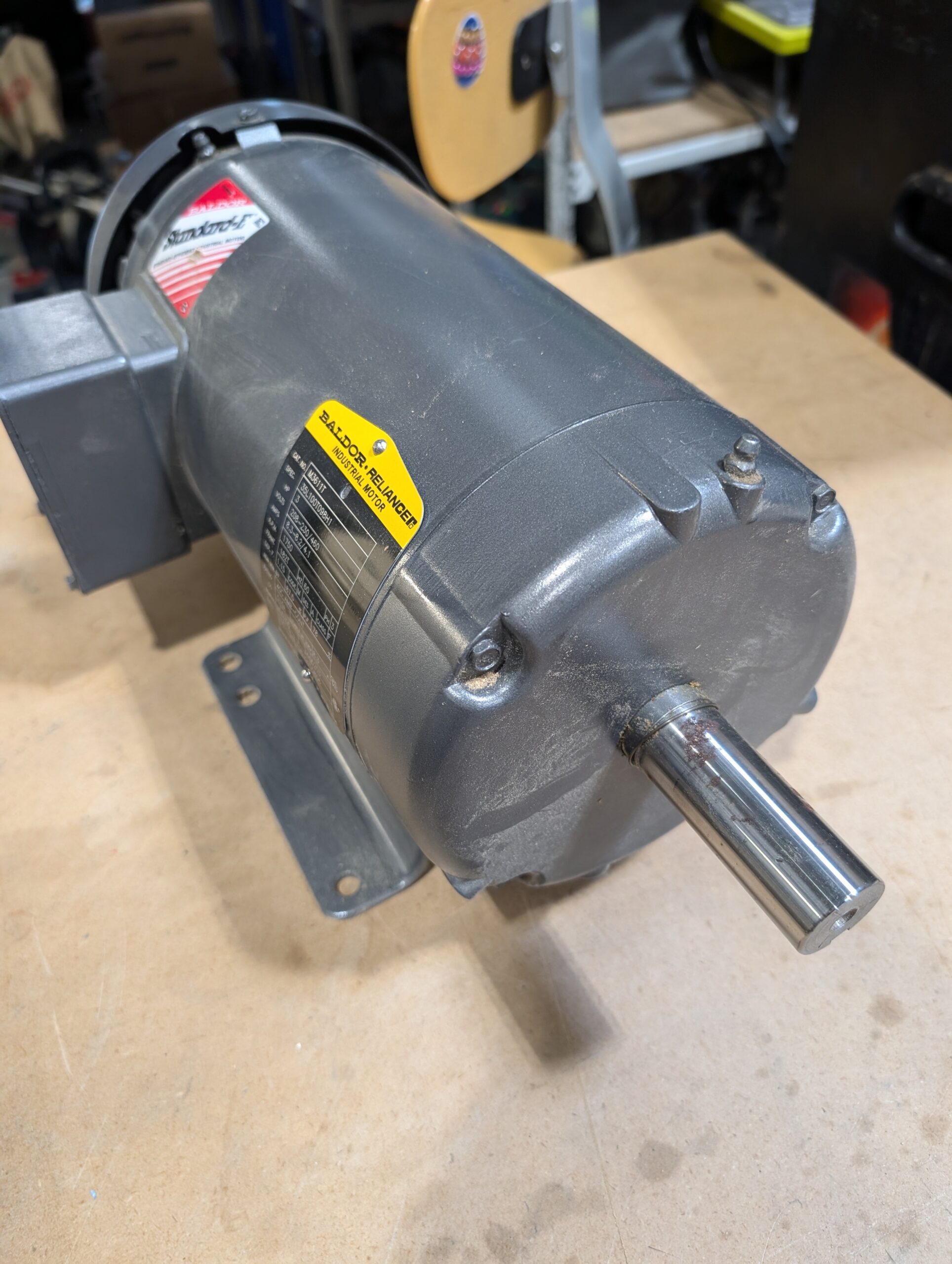

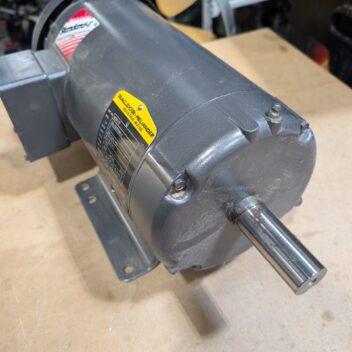

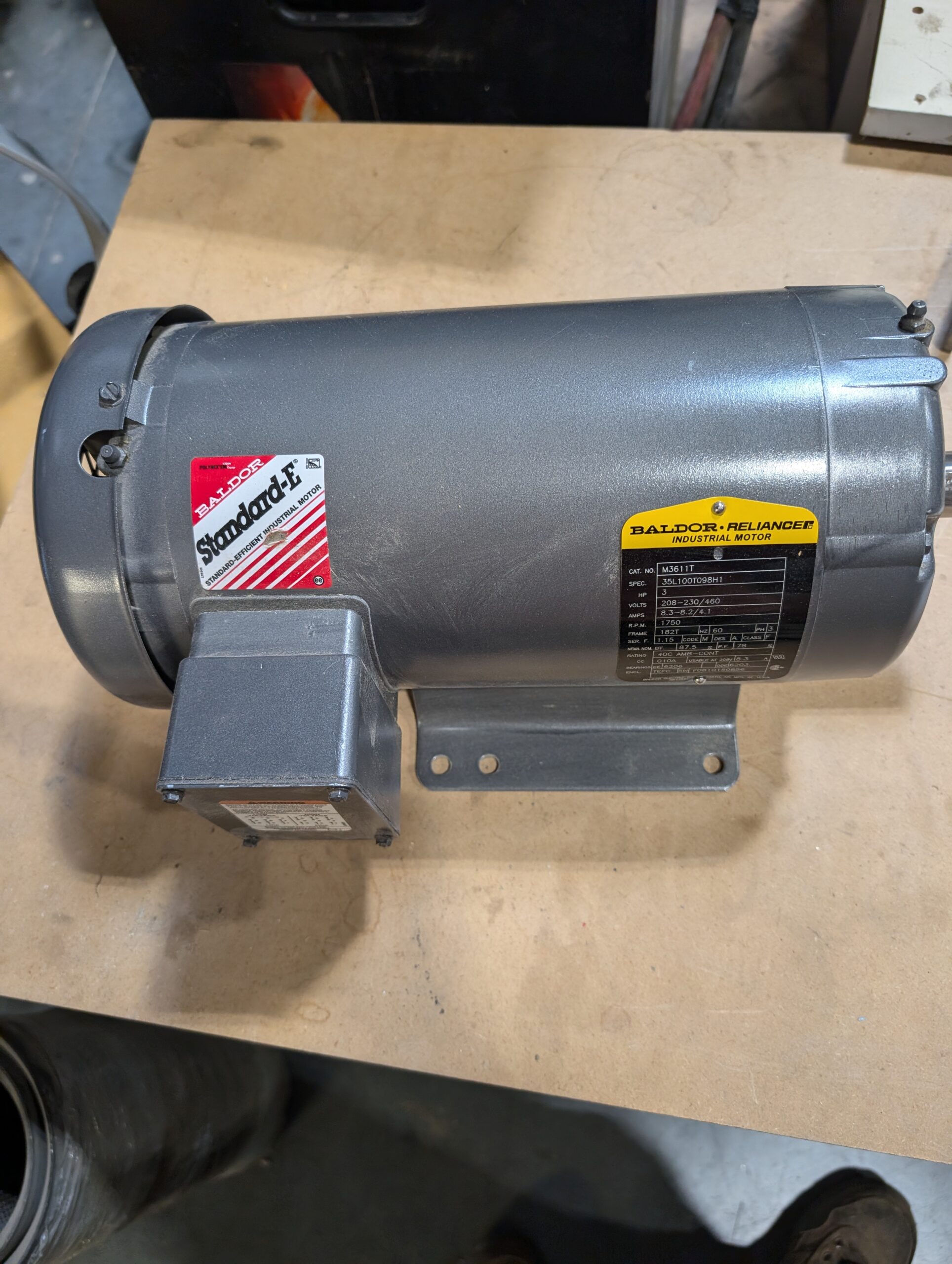

Baldor Electric Motor M3611T 3Hp 3Phase 60Hz 208-230V
Add to cart
Contact Us
View
More
Description
Ship Estimate

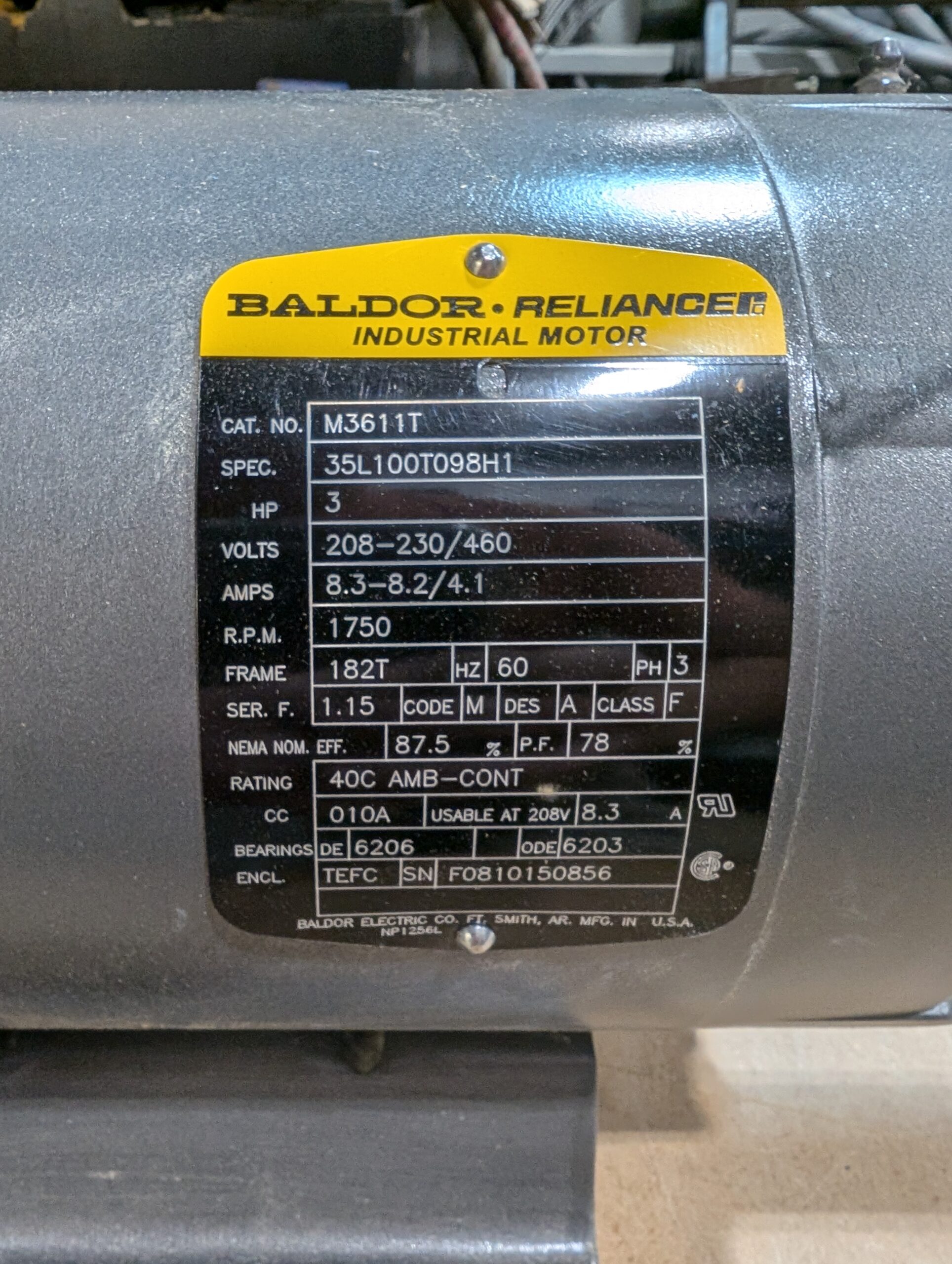

Specifications:
The
Baldor M3611T
is a
3 HP, 3-phase AC induction motor
built for general-purpose industrial applications.
Horsepower:
3 HP
Phase / Frequency:
3-Phase, 60 Hz
RPM:
1750 RPM (Nameplate) / 1800 RPM (Synchronous)

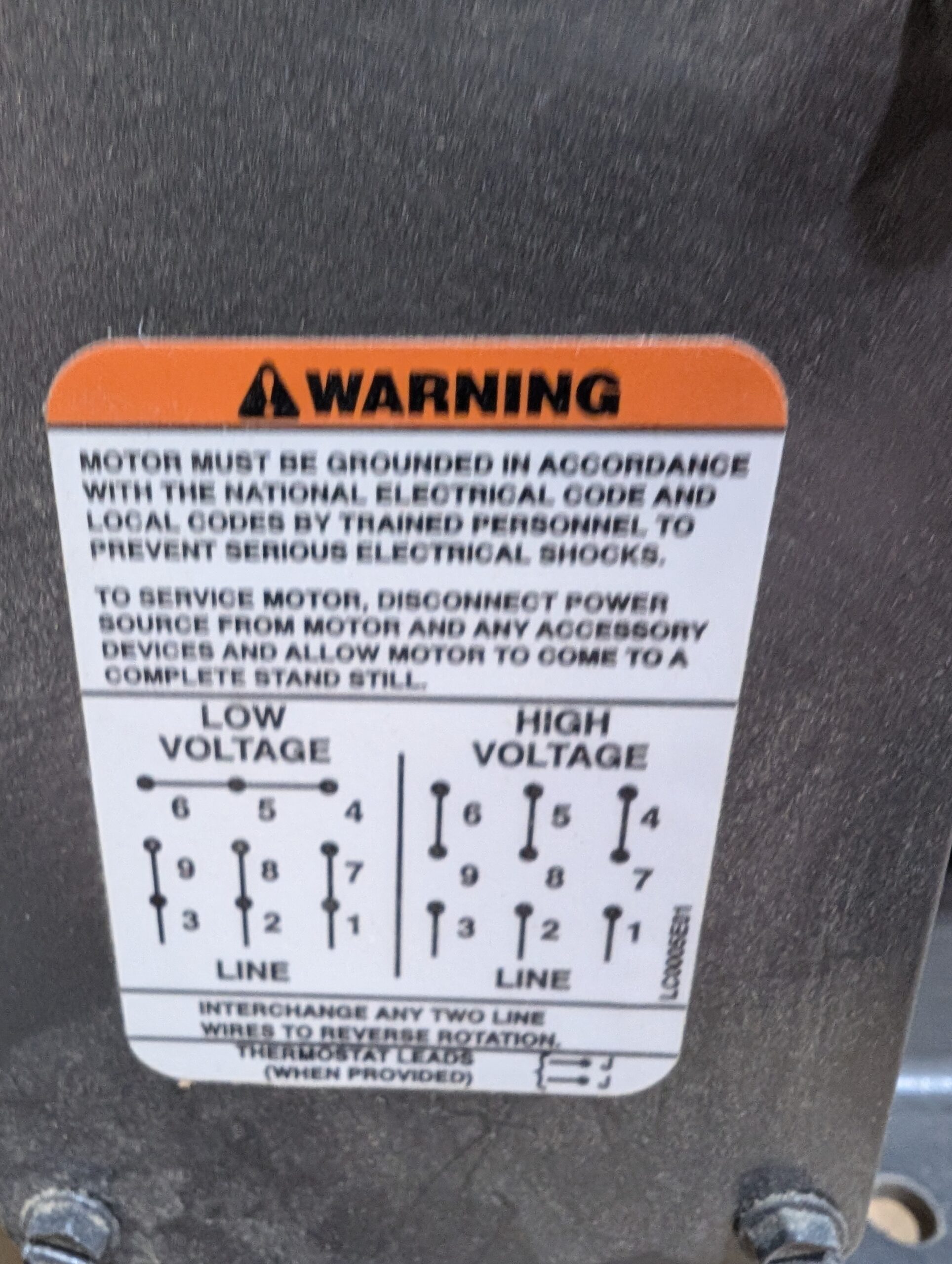

Voltage:
208-230 / 460 V
Full Load Amps (FLA):
9.1-8.4 A at 208-230 V / 4.2 A at 460 V
Frame Size:
182T (Rigid base mount)
Enclosure:
TEFC (Totally Enclosed Fan Cooled)
Service Factor:
1.15
Insulation Class:
Class F
NEMA Design Code:
Design A (KVA Code L)
Full Load Efficiency:
87.5%
Bearings:
Ball bearings (Drive End: 6206, Opposite Drive End: 6203) with Polyrex EM grease
Weight:
Approx. 69 lbs
