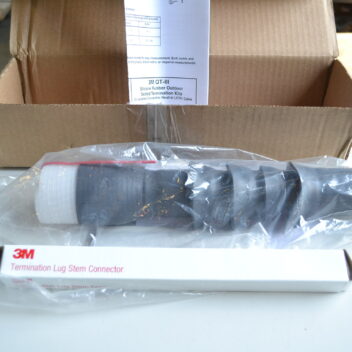

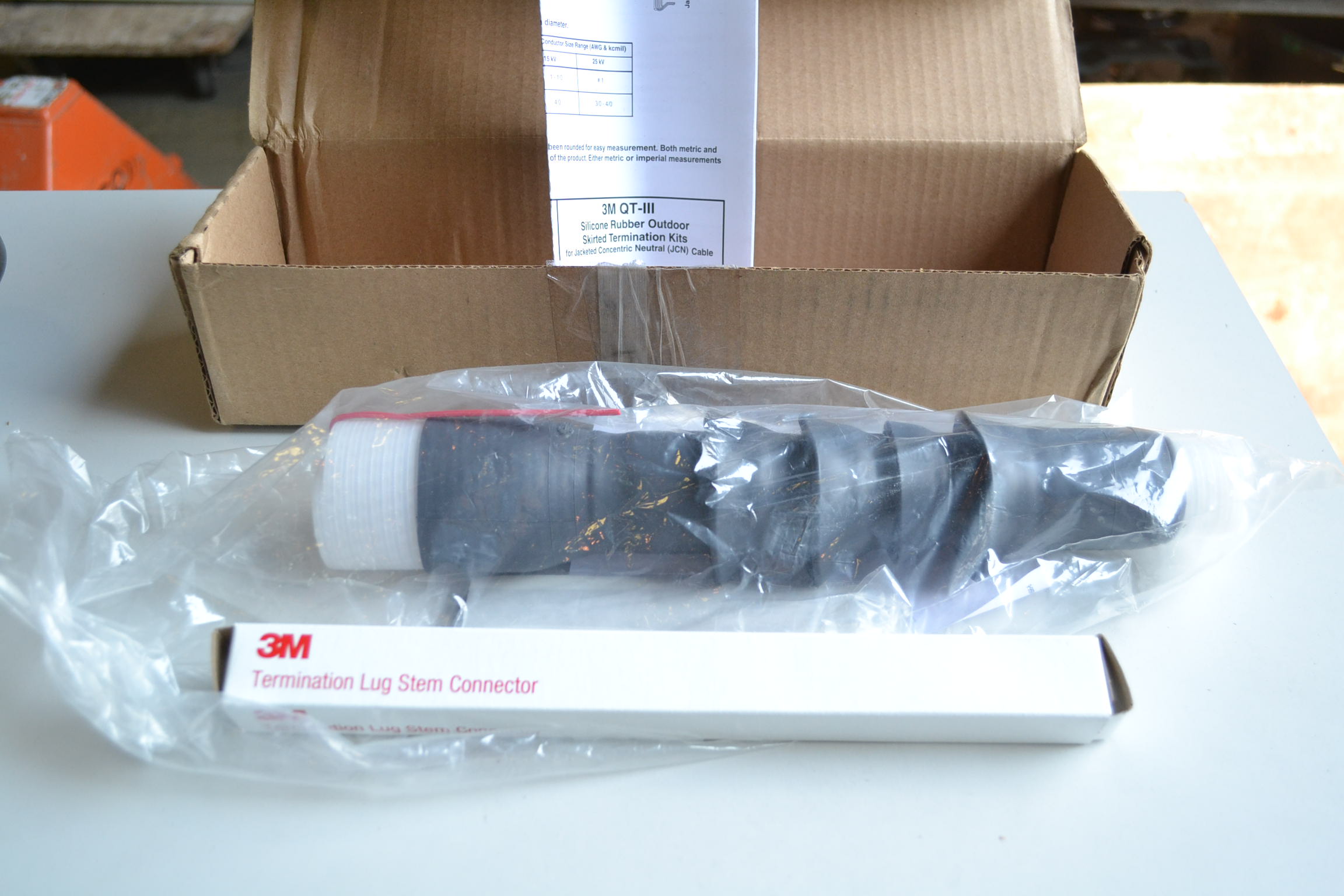

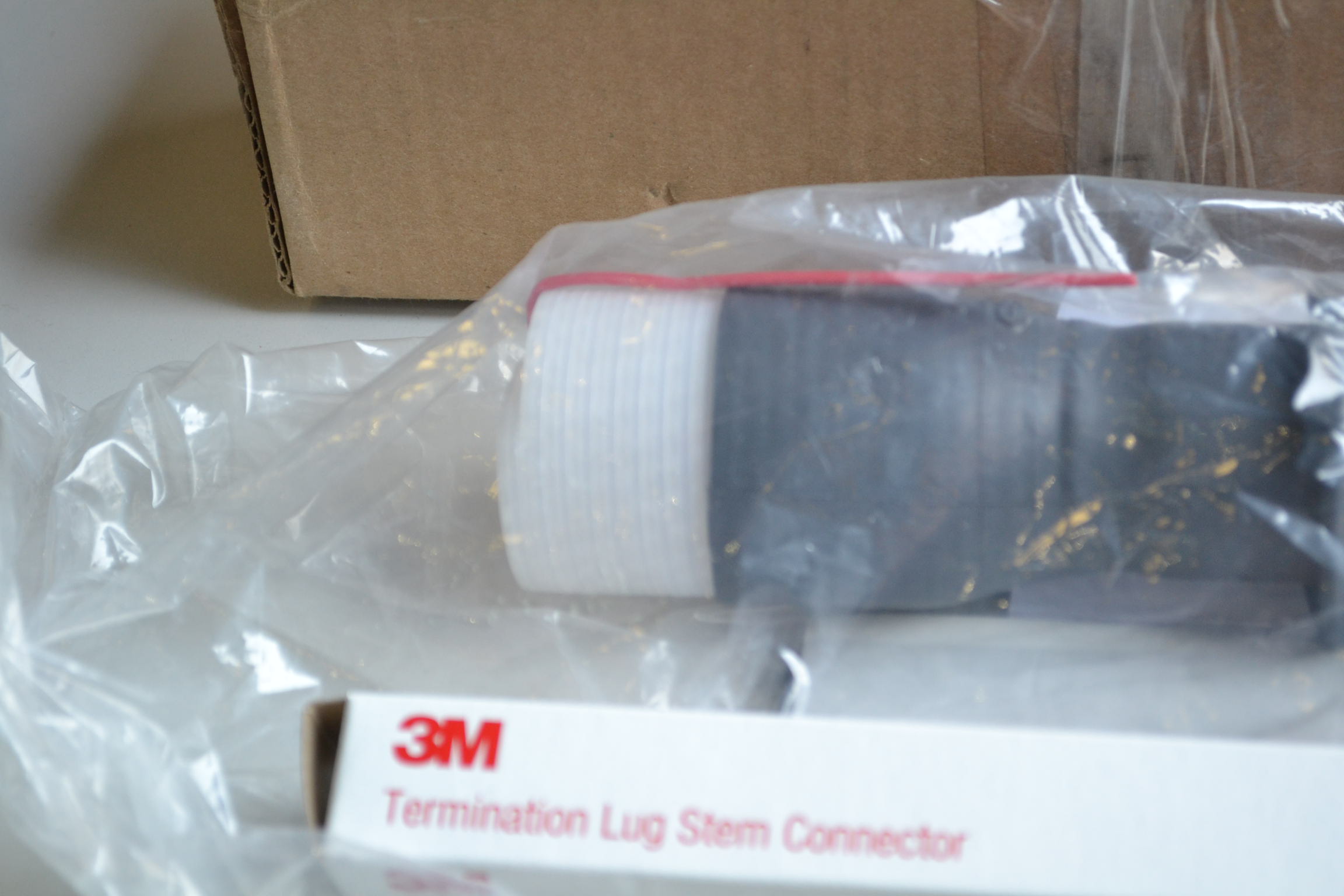

3M™ Cold Shrink QT-III 7640-S, 7650-S & 7660-S Series Termination Kit includes a 1-piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric-constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
High dielectric-constant material regulates the distribution of electric field stress
Suitable for outdoor applications
Termination has 0.64 to 1.08-in insulation O.D.
Accommodates wire sizes of 4/0 AWG to 400 kcmil at 5kV, 3/0 AWG to 300 kcmil at 8 kV, 2 to 4/0 AWG at 15kV, 2 to 1/0 AWG at 25/28 kV
Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
Withstands voltages of 5 to 35kV and is 150 kV BIL-rated
Includes a 4-skirt, 1-piece, cold shrink termination
IEEE Standard 48 Class 1 Approved for outdoor, weather-exposed applications
