Pneumatics
/
Pneumatic Air Cylinders
/

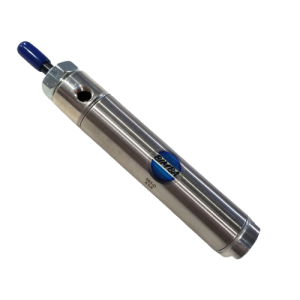

Bimba 093-D Pneumatic Cylinder
SKU: 110-122
CAD $
30.00

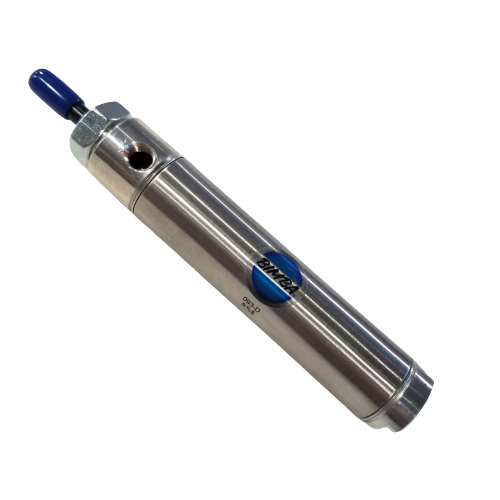

Bimba 093-D Pneumatic Cylinder
Add to cart
Contact Us
Description
Ship Estimate
Specifications:
The
Bimba 093-D
is a
1-1/16-inch bore, 3-inch stroke double-acting pneumatic air cylinder
from the Original Line series.
Brand / Series:
IMI Bimba Original Line (09 Series)
Bore Size:
1-1/16 inches
Stroke Length:
3 inches
Action Type:
Double-acting, air return
Mounting Style:
Front nose mounting (includes 5/8-18 threaded mounting nut)
Ports:
2 x 1/8″ NPT threaded pneumatic ports
Piston Rod:
Standard blackened carbon steel rod with 5/16-24 UNF-2A male threads
Temperature Range:
-20°F to +200°F (-28°C to +93°C)
Lubrication:
Permanent grease lubricant (no extra service lubrication needed)
Design:
Non-repairable, Blue and Improved design
Approximate Weight:
0.55 lbs (0.25 kg)
